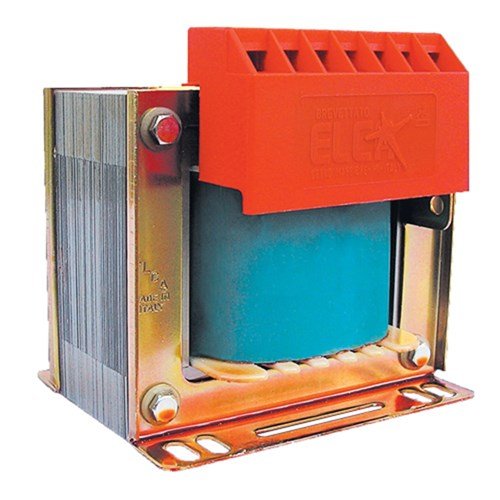

Elca TM110 | Control transformer 100 V.A “IN 220/380 – OUT 24”

Elca TM110 | Control transformer 100 V.A “IN 220/380 – OUT 24”

Description

The Elca TM110 is a single-phase, dry-type control transformer rated at 100 VA. It is designed to step down input voltages of 220V or 380V AC to a fixed 24V AC output, making it ideal for use in industrial automation and control systems that require low-voltage AC power.

Specifications

Power Rating: 100 VA

Input Voltage: 220V / 380V AC

Output Voltage: 24V AC

Frequency: 50/60 Hz

Insulation Class: Class B

Cooling: Natural air-cooled (dry type)

Protection Level: IP00 (open-type, suitable for installation inside enclosures)

Mounting: Panel-mounted

Construction: Compact, lightweight, and maintenance-free

Key Features

Delivers a stable 24V AC control voltage

Compatible with both 220V and 380V AC supply

High reliability with low energy losses

Designed for continuous operation in industrial environments

Suitable for use in tight control panels due to its compact design

Safe and compliant with electrical insulation and thermal standards

Typical Applications

Power supply for control circuits in automation systems

Operating relays, timers, sensors, and contactors

Use in HVAC control panels, machine tools, and electrical switchboards

Ideal where a consistent 24V AC is required for logic or signaling circuits
