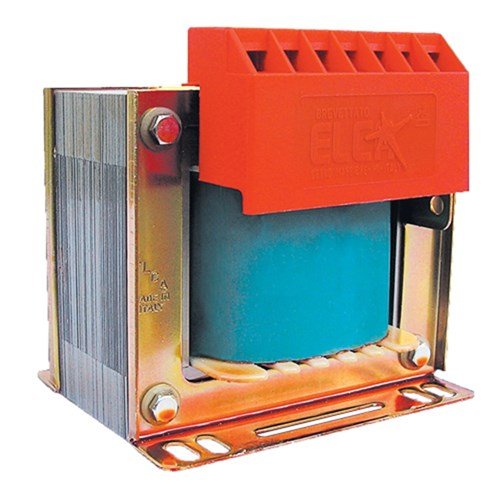

Elca TM110 | Control transformer 100 V.A “IN220/380 – OUT 220/380”

Elca TM110 | Control transformer 100 V.A “IN220/380 – OUT 220/380”

Description

The Elca TM110 is a single-phase, dry-type isolation transformer rated at 100 VA. It is designed to provide galvanic isolation between the input and output while maintaining the same voltage level—220V or 380V AC—on both sides. This transformer is typically used for safety, signal conditioning, or voltage stabilization in control and industrial systems.

Specifications

Power Rating: 100 VA

Input Voltage: 220V / 380V AC

Output Voltage: 220V / 380V AC (same as input)

Frequency: 50/60 Hz

Type: Dry-type, natural air-cooled

Insulation Class: Class B or higher

Protection: IP00 (open type, for indoor installation)

Mounting: Panel-mounted

Construction: Compact and maintenance-free

Key Features

Provides electrical isolation between input and output circuits

Maintains the same voltage level (no step-up or step-down)

Enhances system safety and protects sensitive components

Compact size, suitable for control panels

Reliable performance in industrial environments

Suitable for continuous duty operation

Applications

Electrical isolation in control systems

Noise reduction and signal filtering

Protection of sensitive control circuits

Safety separation between power sources and control devices

Used in automation panels, machinery, and switchboards
